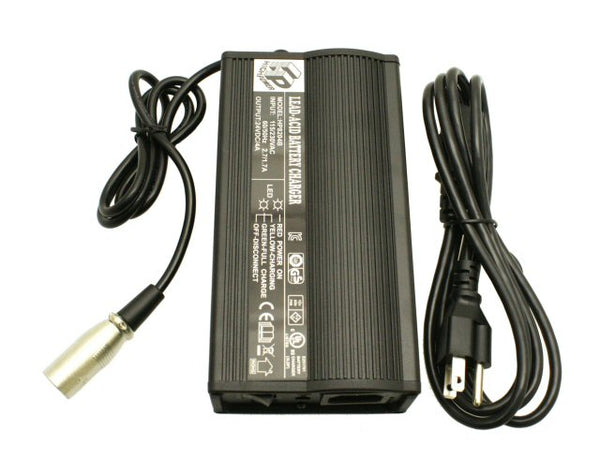

Primo 24 Volt 4.0 Amp XLR HP8204B Battery Charger

Primo Scooter Company

Sale price $95.49 Regular price $99.99

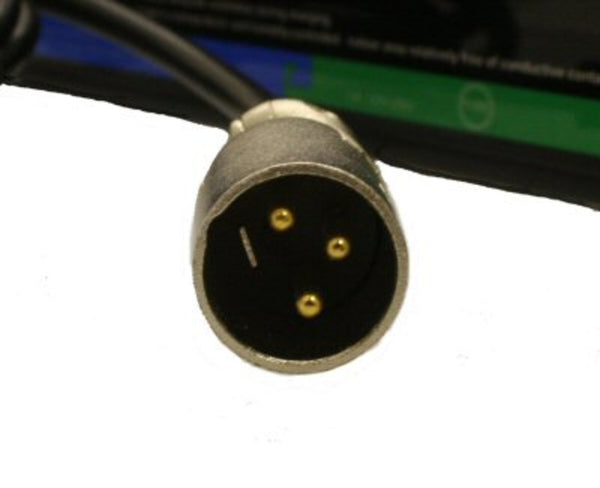

Premium quality 24 volt 4.0 amp XLR HP8204B battery charger compatible with many mobility scooters and power wheelchairs that use off-board chargers with the XLR style charging connectors.

Please Note: This charger is equipped with a dual voltage switch which allows the charger to alternate between 115 and 230 VAC. When used in the United States, the switch should be in the 115V position.

This is a quick-charge battery charger that can recharge 24 volt battery packs in half the time that it takes a standard charger. It features 115-Volt input, 4.0 Amp output, and an automatic shutoff when battery is charged.

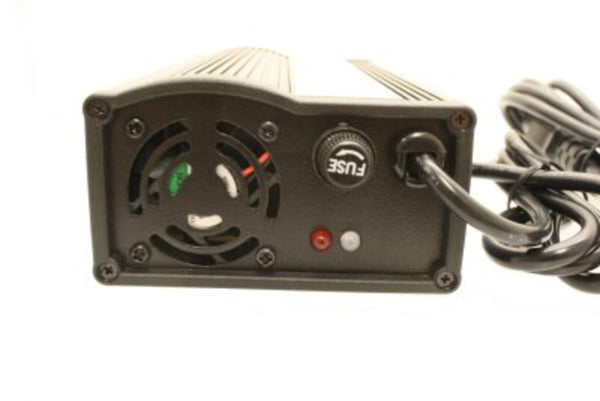

This High Power battery charger can be used used on standard electric scooters as well as electric mobility scooters with large sealed lead acid scooter batteries (18 Ah batteries and above). The charger is equipped with an included 10 amp GMA fuse.

Compatible with the following makes/models:

  • All 24v LashOut & BladeZ scooters
  • Bruno Catalina 46 / Cub 30 / Cub 32 / Cub 35 / Cub Pediatric / Firefighter 46 / Humvee 46 / Police 46 / PWC-2300 / SuperCub 34 / SuperCub 44 / SuperCub 46 / Thunder 37 / Typhoon C3
  • C.T.M. Homecare HS-320
  • Currie GT500 / GT250 / GT200 / GT Kobra / GT450 / GT Asteroid / GT Tsunami / GT Shockwave
  • Currie Izip i500 / i400 / i350 / i300 / Izip Trailz
  • Currie Lightning FS / Phat Flyer / Phat Phantom / Scoot-E / KDZ1000 / Mini-E
  • Dalton Medical SC-S235 / Medical SC-S245
  • Drive Medical Ventura / Ventura DLX
  • EV Rider Gusto
  • Ezip E400 / E450 / E500 / E750 / E900 / Ezip Trailz
  • FreeRider FR168-3 / FR168-3P / FR168-3S / FR168-4 / FR168-4P / FR168-4S / FR510DX2 / FR510DXs2
  • Golden Companion I (GC240) / II 3-Wheel (GC340) / II 4-Wheel (GC440) / Compass Sport (GP605SS/GP605CC)
  • Hoveround Forerunner / MPV 4 / MPV 5
  • Invacare P9000 XDT
  • Jazzy Select GT
  • Merits Junior (P320/P3201/P32011/P32012) / Pioneer 1 (S235/S2351/S2353/S2354) / Pioneer 2 (S245/S2451/S2454) Scooter / Pioneer 2 Twin (S246) Scooter / S2455 / Swift (S742) / Travel-Ease Regal (P120/P1201/P12011/P12012) / Vision CF (P322)
  • Mongoose M150 / M200 / M250 / M350 / Z350 / Pro Fusion / Pro Hornet / Rocket FS
  • PaceSaver Scout / Scout M1 / Scout M1-350 / Scout RF / Scout RF-P3 / RF-P4
  • Quickie G-424
  • Rascal 200T / 500T
  • Revolution Mobility Liberty 361 / Tempo 3 / Tempo 4
  • Schwinn S500 / S750(24v) / S650 / S350 / S250 / S400 / Missle FS / F18 / Xcel / Zone5 / Fly FS
  • Shoprider 6Runner 10 (888WNLM) / 6Runner 10 Deluxe (858WM) / FPC Folding (PHFW-1118/PHFW-1120) / Sunrunner 3 (888B-3) / Trooper (UL8W36)
Specs



  • Model: HP8204B
  • Input: 115/230 VAC, 50/60Hz
  • Output: 24 VDC, 4.0A
