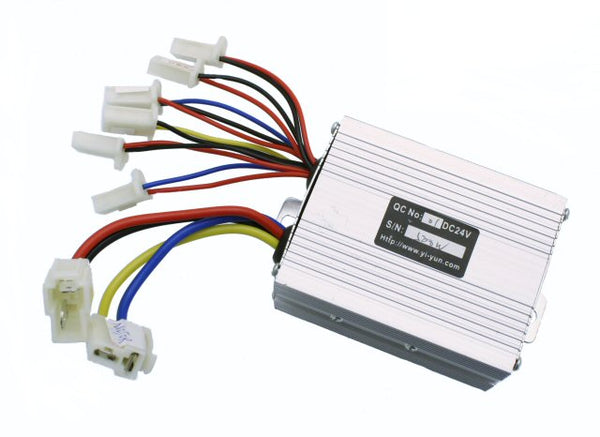

Universal Parts 24 Volt 500 Watt speed/voltage controller for electric scooters, full-size electric scooters, karts, mopeds and electric bikes.
This controller comes with the most common wiring configuration found on Chinese electric scooters and vehicles.
Compatible with many 24 Volt vehicle coming with 180 Watt to 500 Watt motors.
Electronic items are non-returnable
Specs
- 24 Volt
- 500 Watt

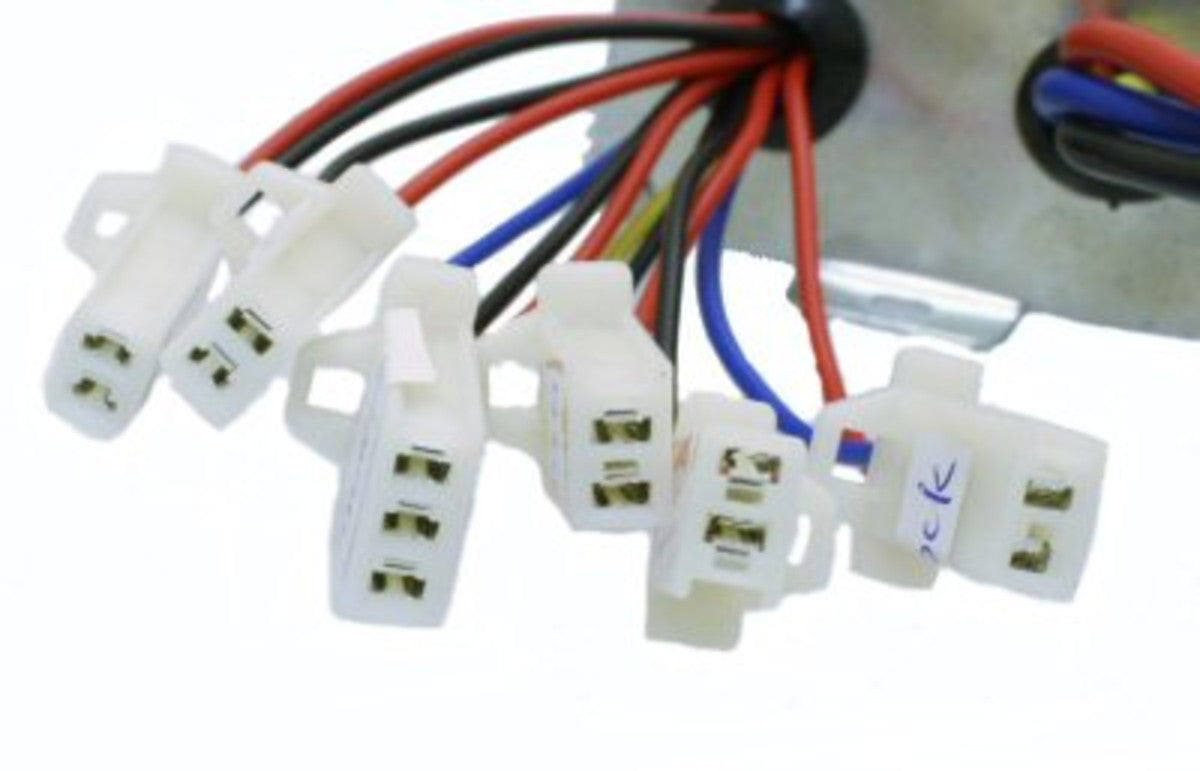

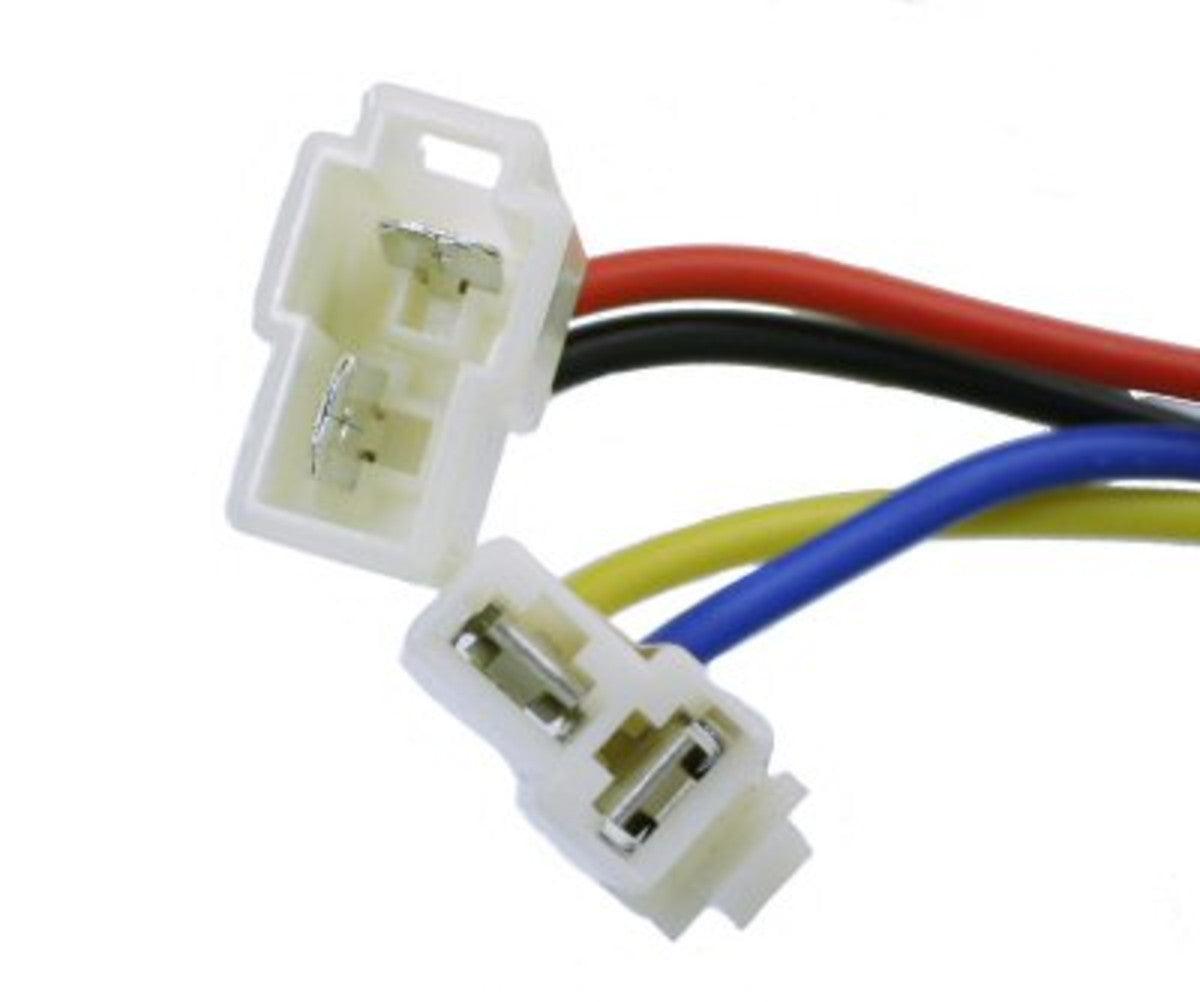

- Eight Plugs: motor, battery, brake, brake light, throttle, lock, charging port, indicator
- Dimensions: 84mm x 65mm x 37mm (3.3" x 2.6" x 1.5")
- Mounting Tab Spacing: 95mm
