Universal Parts 24V, 350W Motor for Razor Dirt Quad

Primo Scooter Company

Regular price $89.99

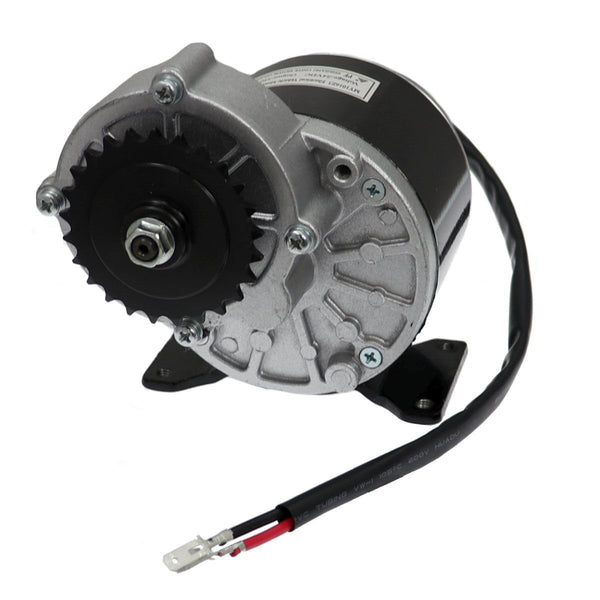

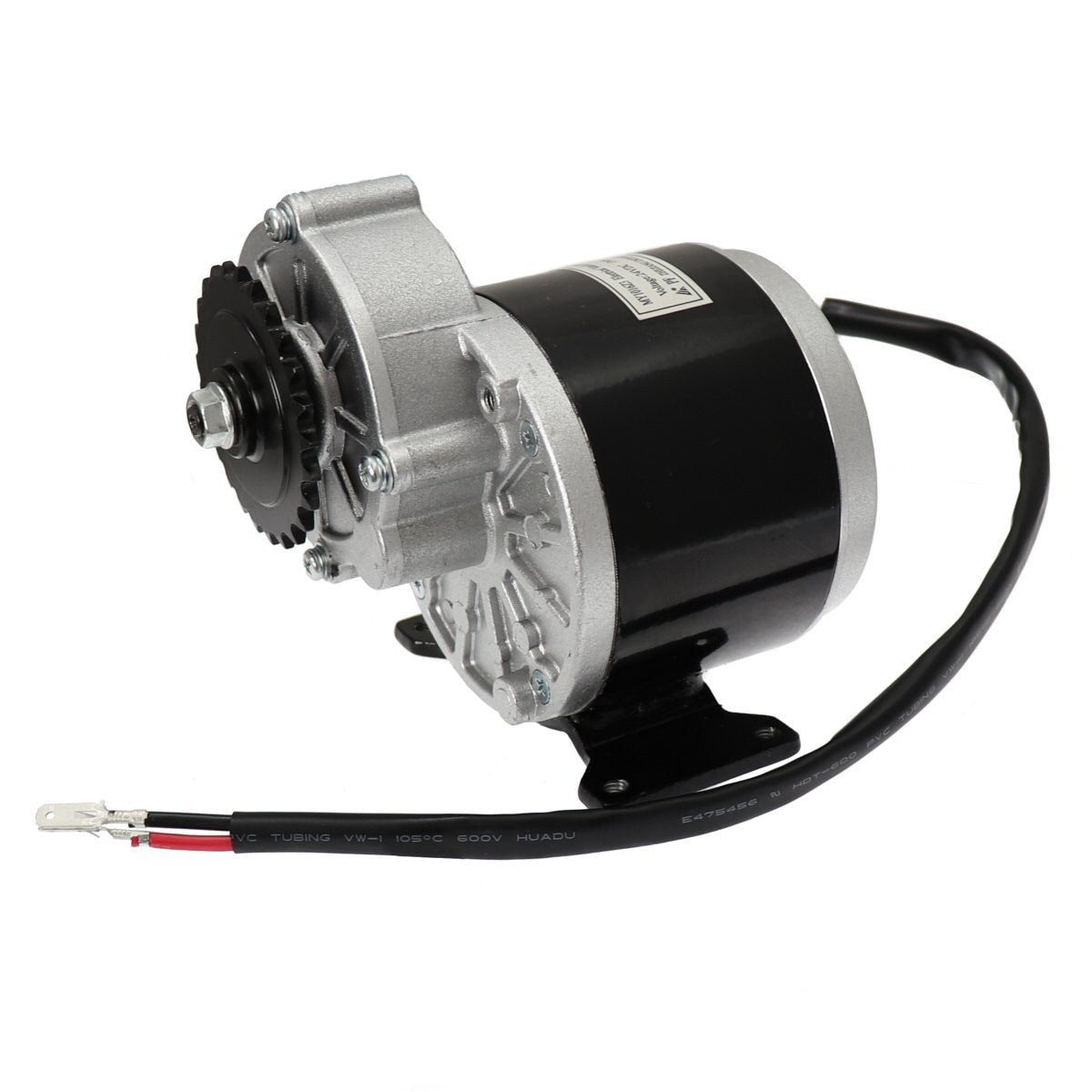

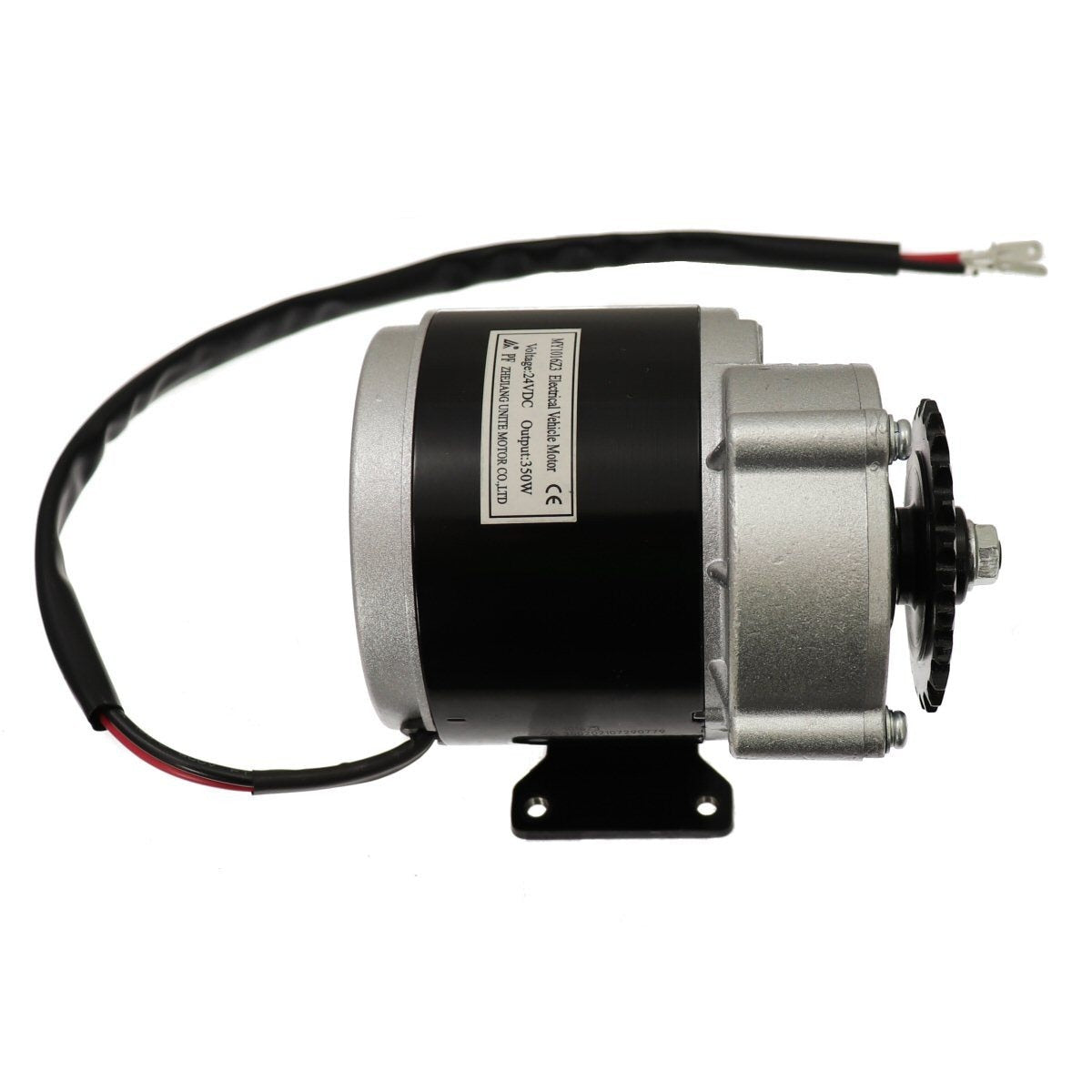

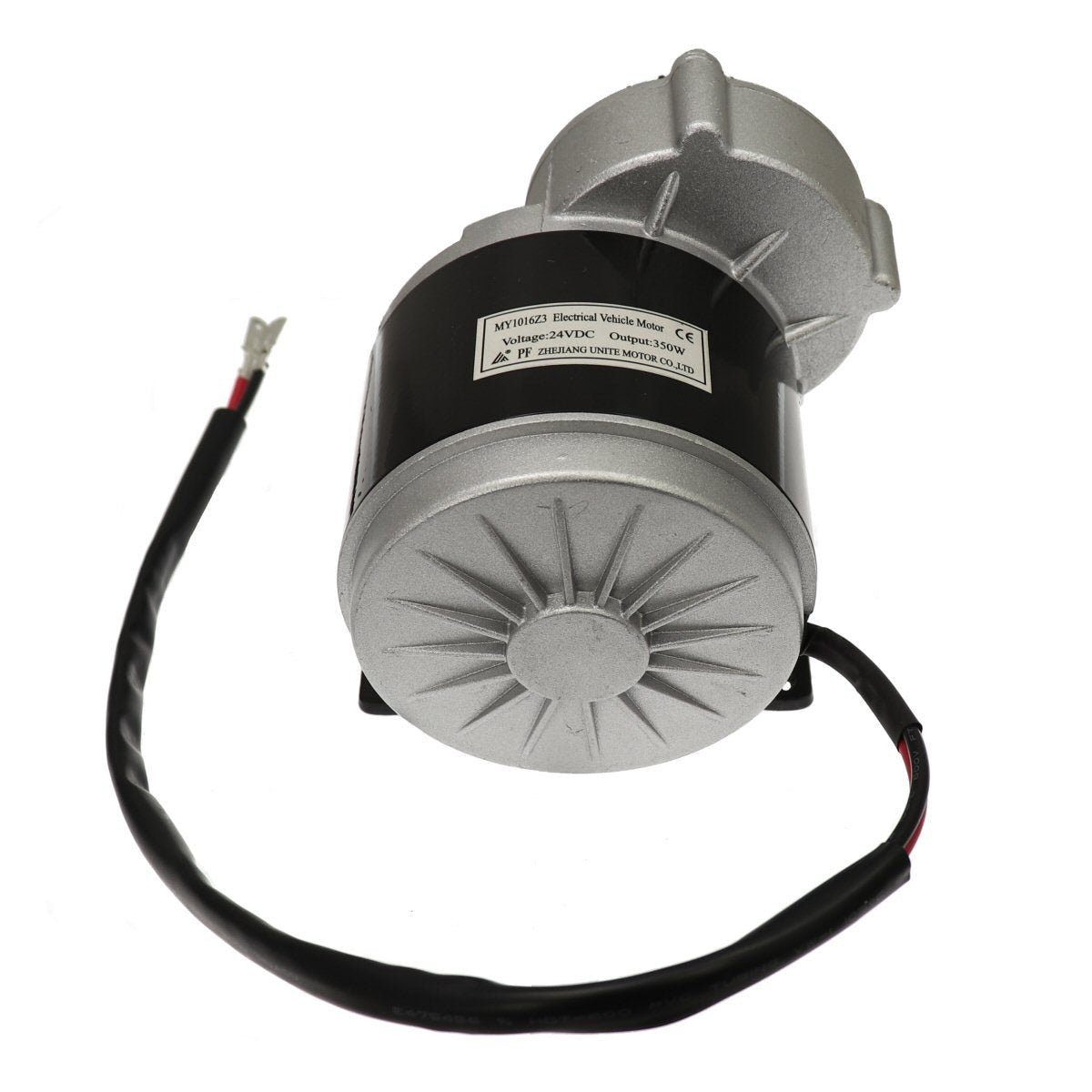

Universal Parts 24V, 350w MY1016Z3 chain drive electric motor with gear reduction for Razor Dirt Quad ATV.

Razor OEM# W25143060030

Please Note: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed.

  • MY1016Z3 Motor
  • 350 Watt
  • 24 Volt
  • Gear Reduction Drive
  • 25 Tooth Sprocket
  • Uses 05T 8mm Chain
  • Torque Rating: 1.1 Nm
  • Bracket Hole Spacing (left to right): 95mm
  • Bracket Hole spacing (front to back): 42mm
  • Overall Length: 140mm
  • Overall Width: 128mm
  • Overall Height: 132mm
  • Wire Length Including Connectors: 18 inches

Supported Models: Razor Dirt Quad
